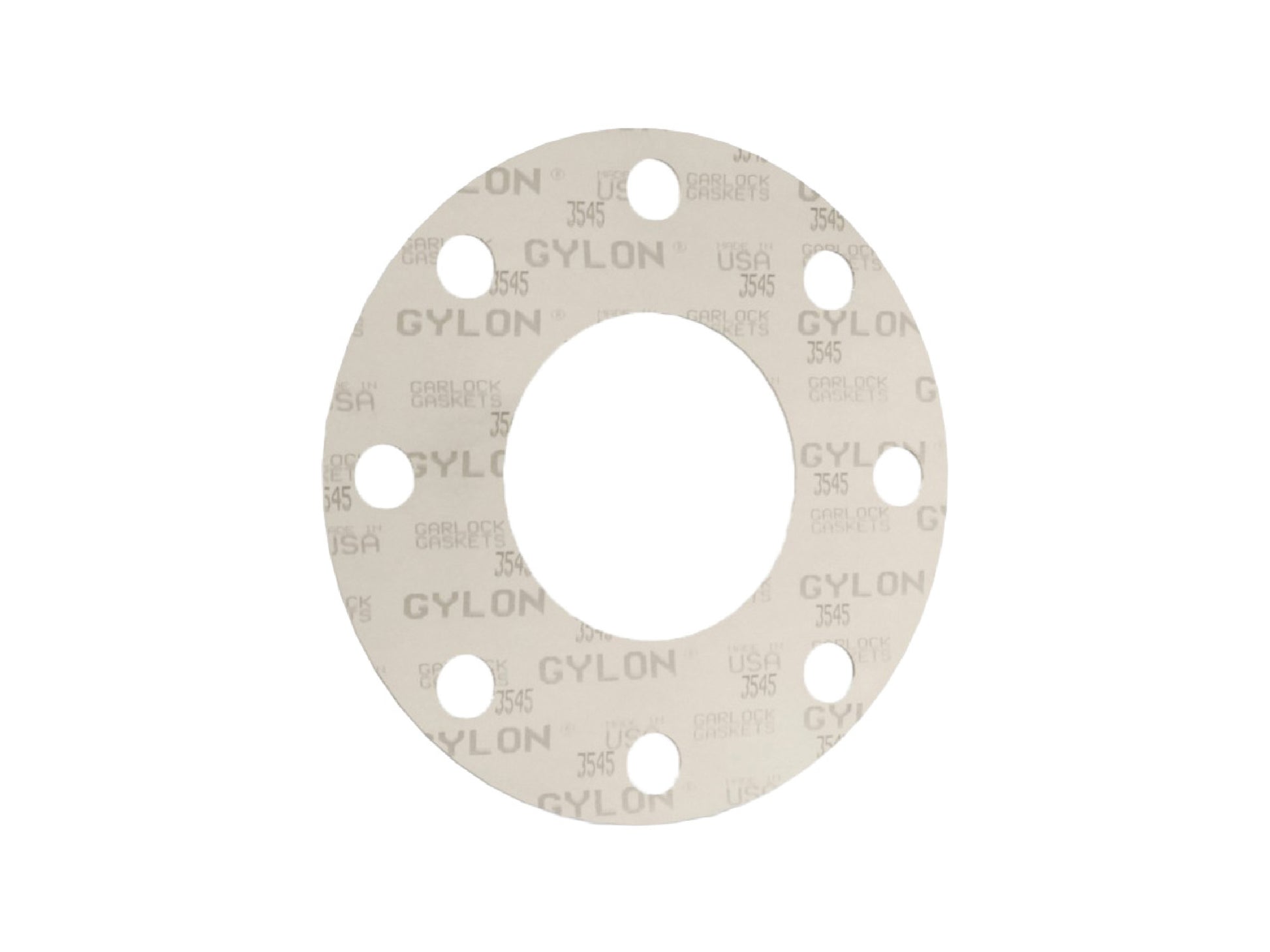

3545 GYLON® Garlock Full Face Gasket Microcellular PTFE with Rigid PTFE Core

The GYLON® Style 3545 full face gasket is a highly compressible microcellular PTFE with a rigid PTFE core for improved handleability. The GYLON® 3545 designed to compress and conform to irregular or damaged surfaces, making it suitable for flanges that generate lower compressive stresses, such and glass-lined flanges and equipment.


$22.00 CAD
$22.00 CAD
Shipping calculated at checkout.

SKU: 3545 FF 1/2 X 150 1/16
Can't Find What You Need? Contact Us For A Quote

Features and Benefits:

  • Tight seal
  • Highly compressible PTFE outer layers seal under low bolt load
  • Compressible layers conform to irregularities, especially on warped, pitted, or scratched flanges
  • Rigid PTFE core reduces cold flow and creep
  • Withstands a wide range of chemicals
  • Can be cut from larger sheets, reducing inventory costs and expensive downtime
  • Rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas
  • Will not support flame
  • Will not support bacterial growth

Gylon 3545 Specification Sheet
