Thomson®

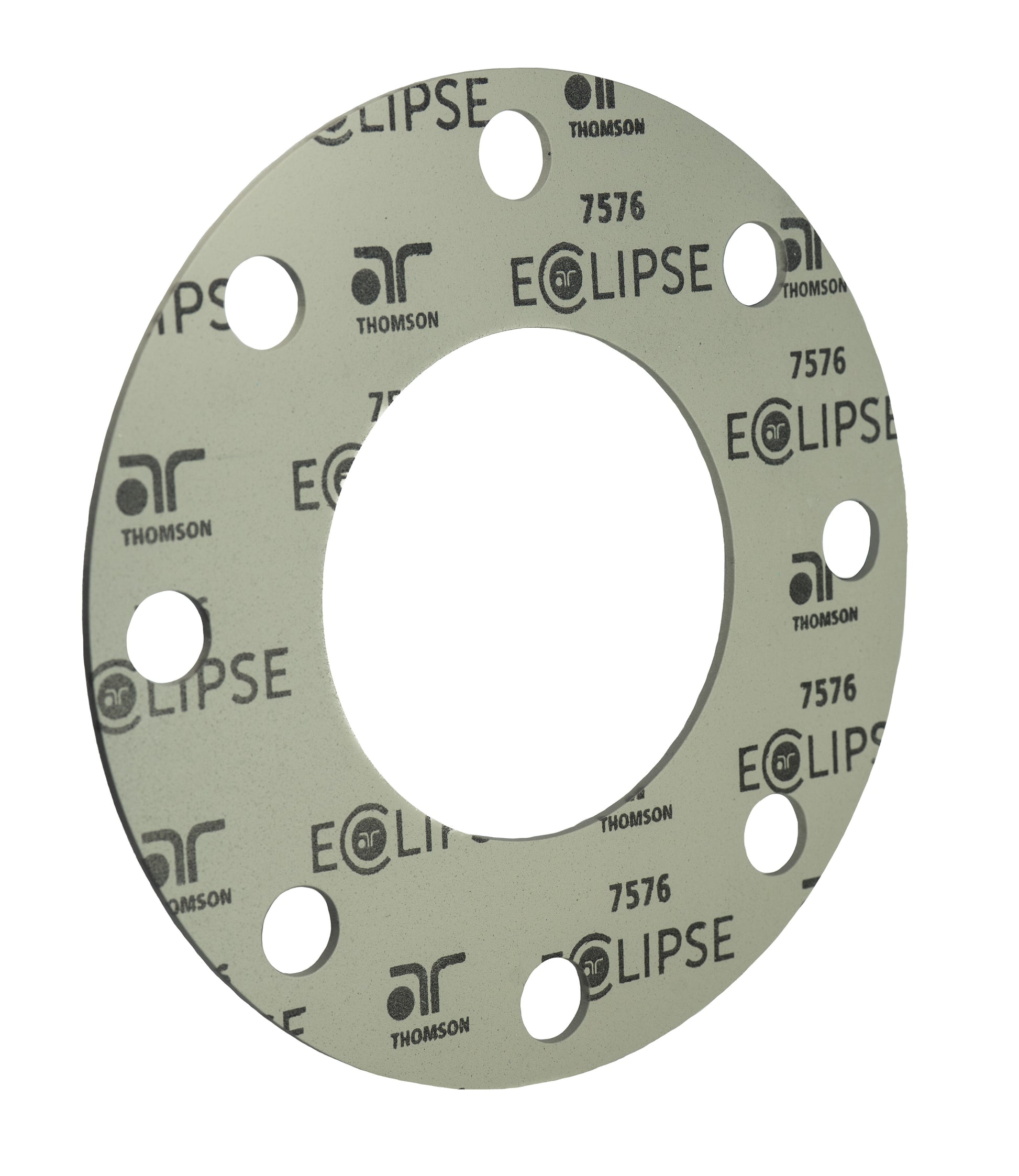

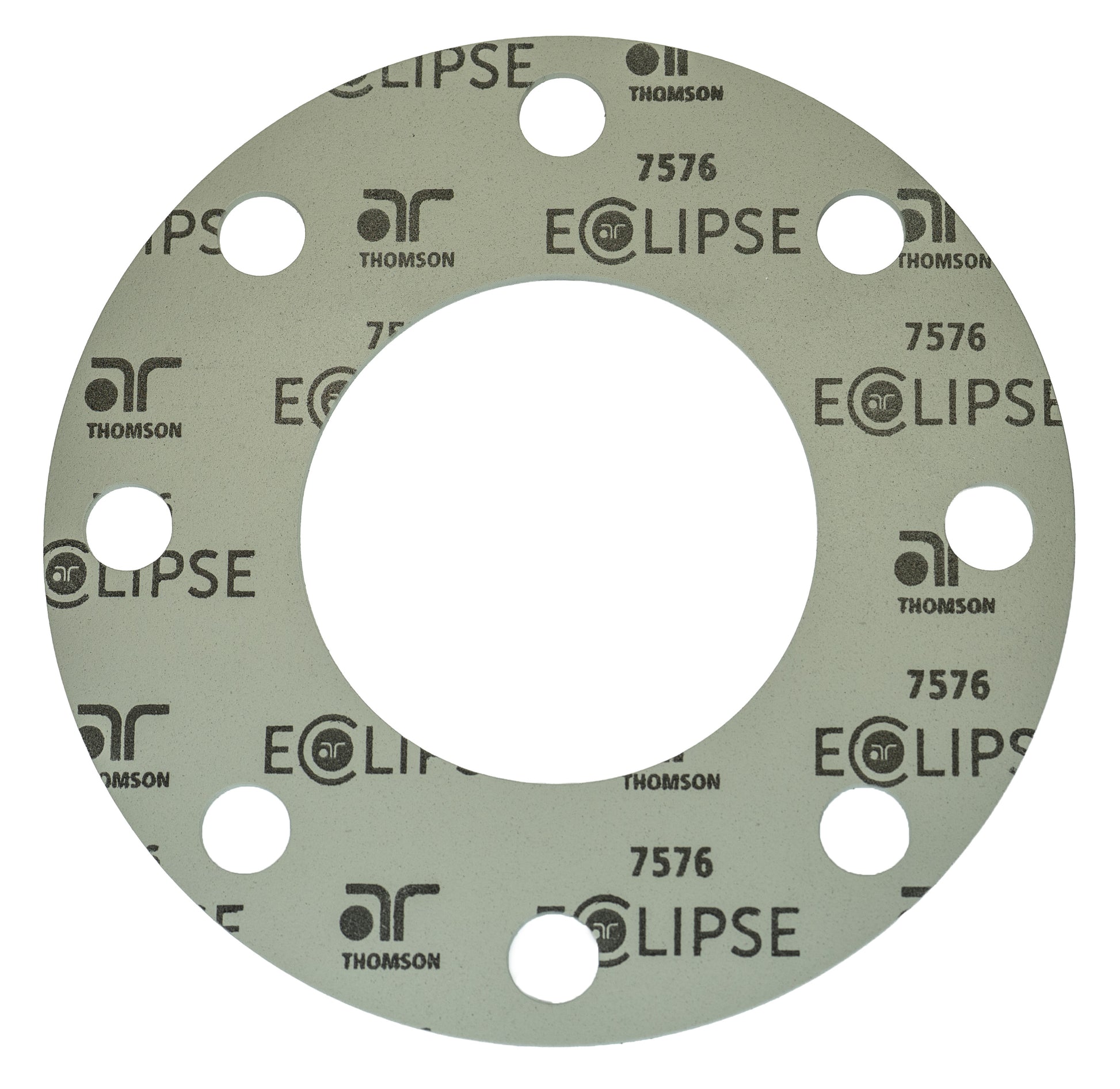

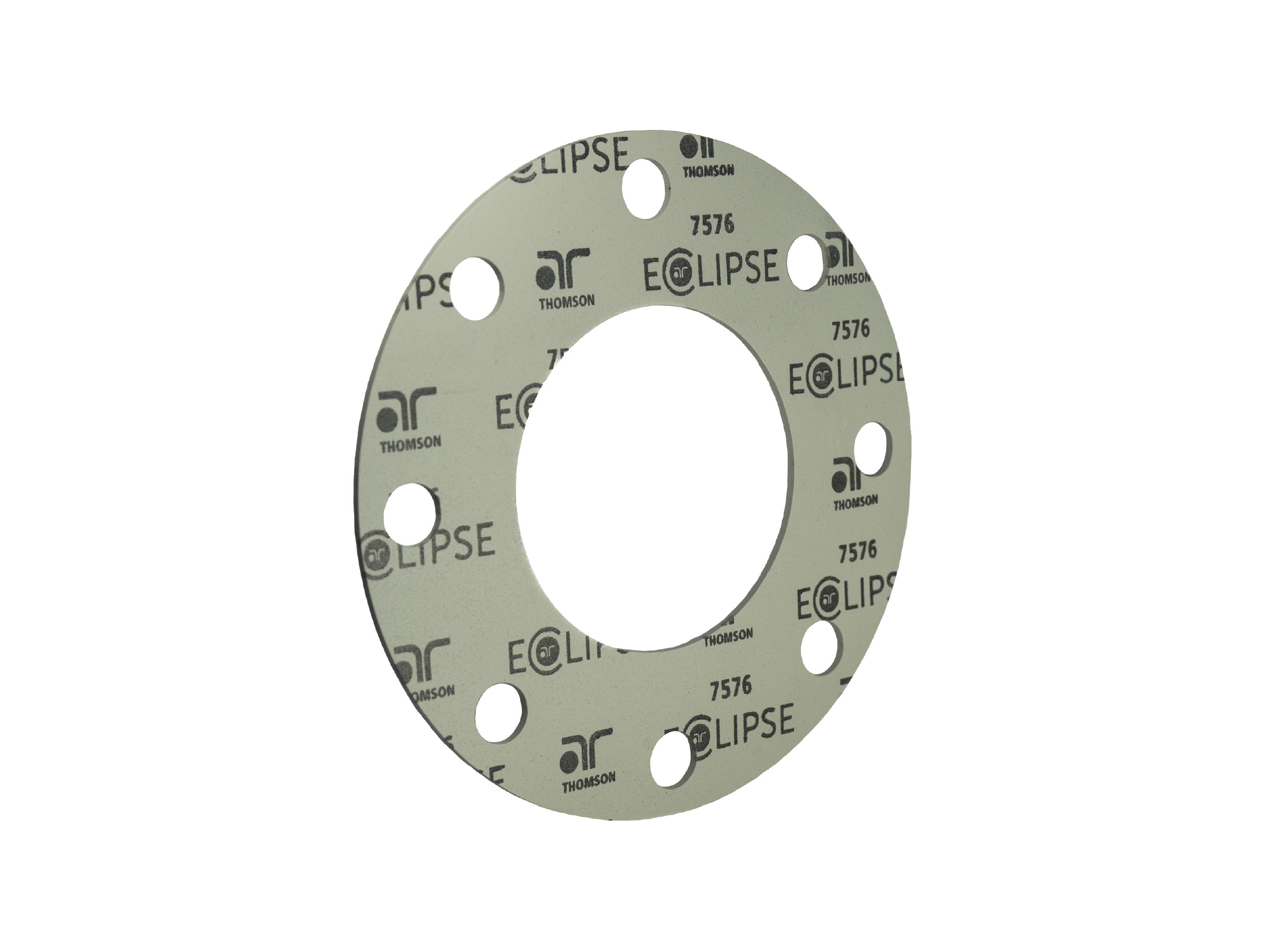

Full Face Gasket Eclipse 7576 PTFE

$97.00 CAD
$97.00 CAD
Shipping calculated at checkout.
The Eclipse 7576 PTFE sheet gasket offers universal chemical compatibility, outstanding creep resistance, and low load sealing performance. Ideal for chemical processing, pulp and paper, water treatment, mining, and general industrial service.
Size (NPS):
Thickness:
Class:
Out Of Stock
Can't Find What You Need? Contact Us For A Quote

Eclipse 7576 is a next‑generation engineered PTFE Full Face gasket designed for broad chemical service and superior sealing. Using a proprietary PTFE filler blend, it provides excellent rigidity, low load sealing, and consistent performance across a wide range of applications.

Also available in ASME B16.21 on request.

Key Features
• Universal chemical compatibility (acids, caustics, solvents)
• Low load to seal for weak or non metallic flanges
• Outstanding creep resistance and improved rigidity
• Suitable for cryogenic, water, hydrocarbons, and steam below 100 psi
• Grey with black branding for easy identification

Applications
• Pulp and paper
• Chemical processing
• Water treatment
• Food and beverage
• Mining acid leaching
• Pharmaceutical

• Material: PTFE with proprietary filler
• Temperature: -450°F to 500°F
• Maximum Pressure: 1200 psi
• Steam Service: 100 psi at 338°F
• Sheet Sizes: 60x60 standard, 70x70 optional
• Thicknesses: 1/32, 1/16, 3/32, 1/8
