Thomson®

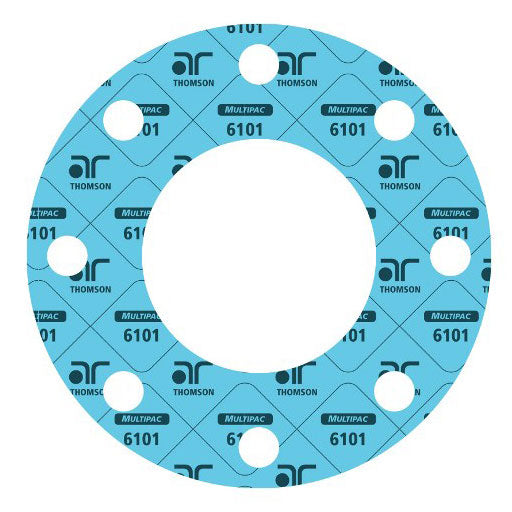

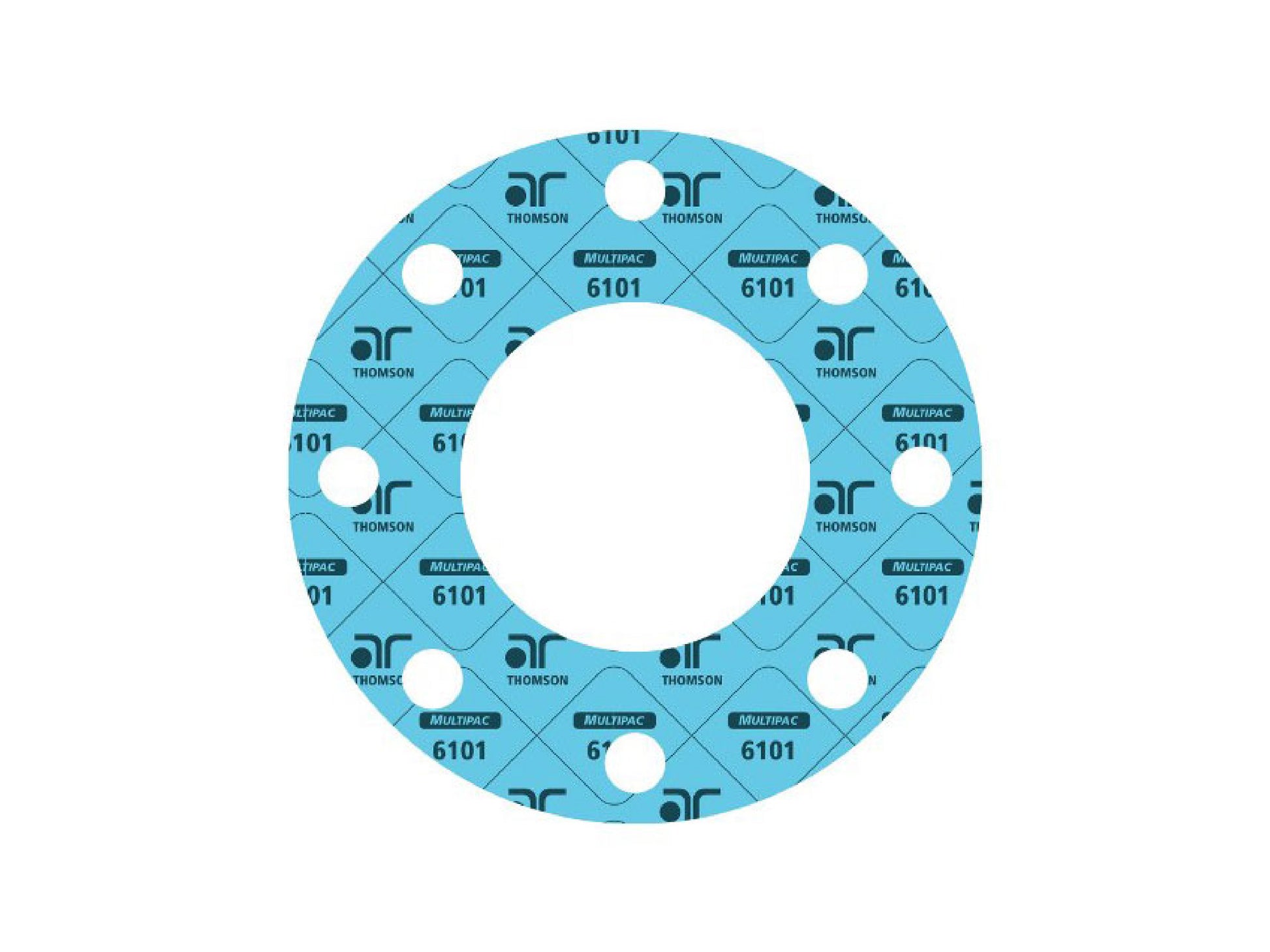

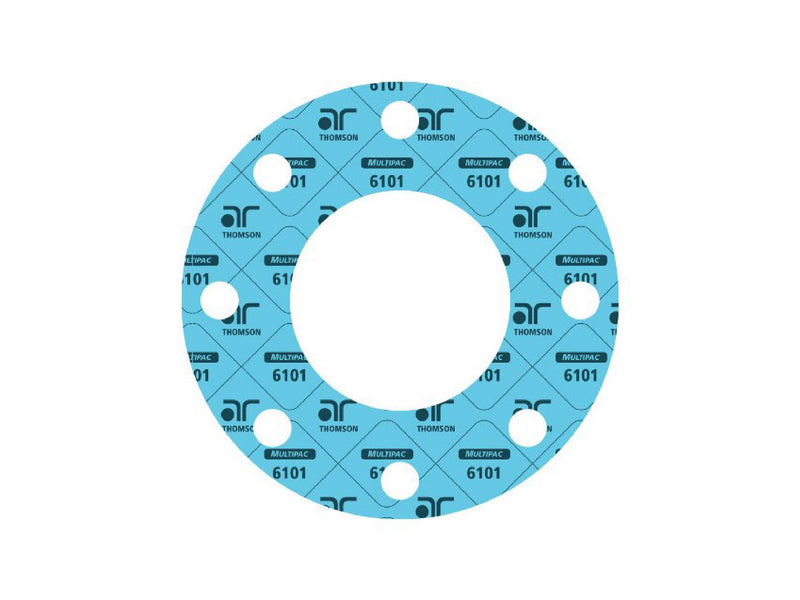

MultiPac™ 6101 Full Face CNAF Gasket | Aramid Fiber & Nitrile Binder | ASME B16.21



The MultiPac™ 6101 Full Face Gasket is a premium general service compressed fiber gasket manufactured from aramid fibers and a nitrile (Buna N) binder. Designed for reliable sealing performance across a wide range of industrial applications, it offers excellent sealability, durability, and handling characteristics for standard flange connections. Ideal for water, steam, oils, fuels, hydrocarbons, and inert gas service.


Features & Benefits

  • Premium compressed non asbestos gasket material
  • Aramid fiber and nitrile binder construction
  • Excellent sealability and flexibility
  • High tensile strength for improved gasket handling
  • Suitable for a broad range of industrial services
  • Fire safe tested to DVGW standards
  • Approved for gas supply applications
  • Resistant to water, saturated steam, oils, fuels, and hydrocarbons
  • Available in multiple flange sizes and pressure classes



Typical Applications

  • Water treatment
  • Wastewater facilities
  • Mining operations
  • Pulp & paper mills
  • Marine & shipbuilding
  • Petroleum processing
  • Industrial manufacturing
  • Compressed air and inert gas systems

Technical Specifications

  • Material: Aramid Fiber with Nitrile (Buna N) Binder
  • Maximum Pressure: 1450 psi (100 bar)
  • Continuous Temperature: 500°F (260°C)
  • Intermittent Temperature: 700°F (370°C)
  • Minimum Temperature: -100°F (-75°C)
  • Color: Blue
  • Fire Safe: DVGW Approved
  • Gas Supply: DVGW 3535-6 Compliant

$2.00 CAD
$2.00 CAD
Shipping calculated at checkout.

SKU: 6101 FF 3/4 X 150 1/16
Can't Find What You Need? Contact Us For A Quote

Features / Benefits:

  • Premium General Service sheet material
  • Good tensile strength and flexibility resulting in robust gasket with improved handle ability.
  • Improved formulation for superior seal-ability.
  • Excellent versatility.
  • Passes Fire Safe test DVGW DIN 30653.
    See Specifications for other certifications and approvals.

Typical Applications:

  • Marine, Shipbuilding, Mining, Wastewater, Pulp and Paper, and Petroleum industries.
  • Water, saturated steam, aliphatic hydrocarbons, oils, gasoline and inert gases.
  • General service applications.

Jump to 6101 Ring Gasket

The classic "Green Gasket" is also available in the same material.

6101 Product Page
